Goldhorn p2 pro

SP Chip ADAU1463

DAC Chip 6 x ESS 9038Q2M

ADC Chip 2 x ES9840Q

Opamp NJM4580 & OPA2604

Capacitors High Temperature for High Reliability to 105°C electrolytics and WIMA film Caps

Music Formats Hi-Res: DFF / DSF / DSD Up to 256, Hi Res Uncompressed: WAV / FLAC / APE / AIFF / AIF, Compressed: MP3 / AAC / OGG / WMA

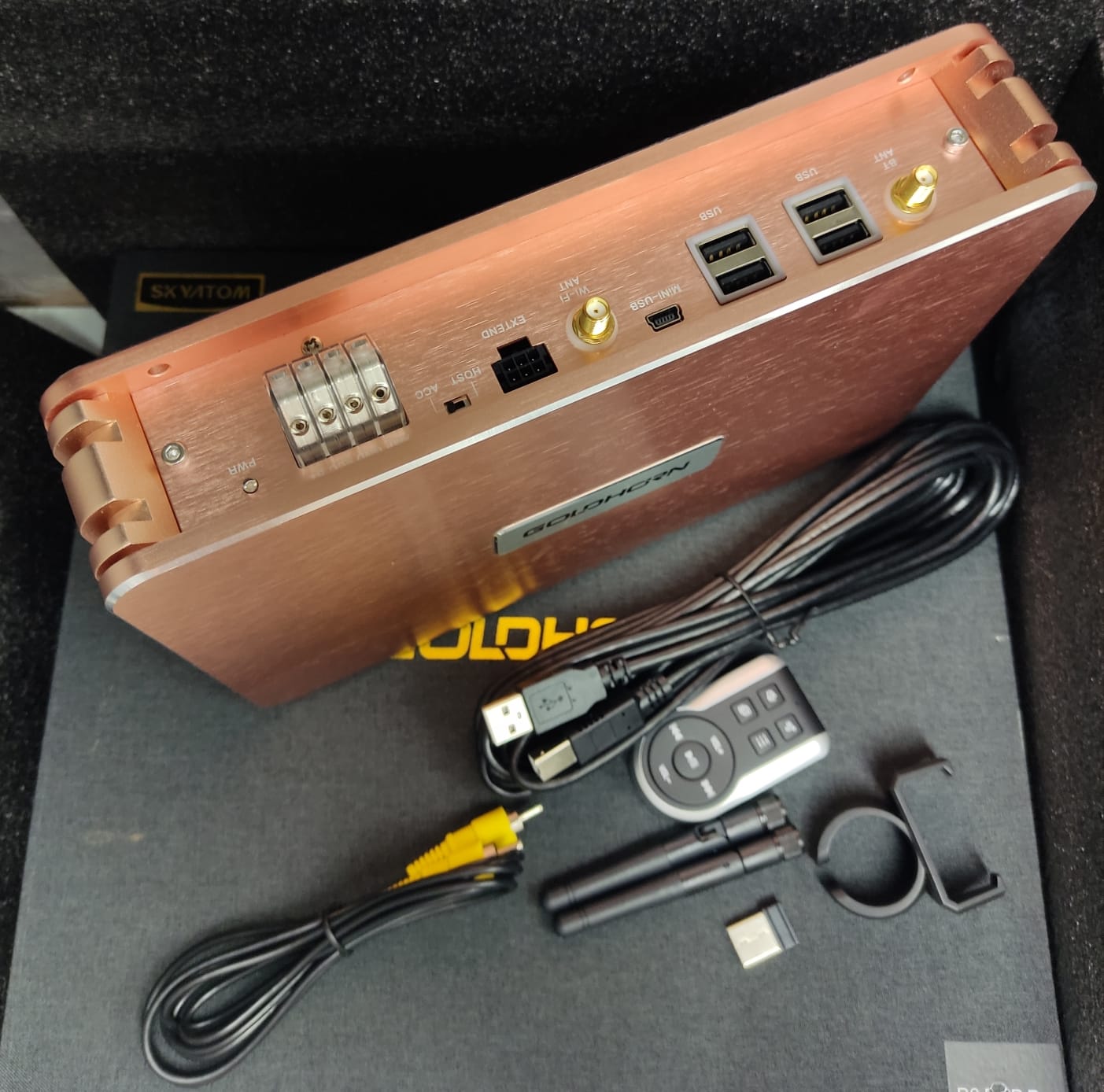

Music Inputs USB 2.0 Host x 4 aptX-LL/AptX HD Optical (to 96/24bit)

Control Inputs BT Wireless Player Remote, Wi-Fi Mobile App, Optional Wired Panel controller w/IPS Display Screen

PC Connection USB B

Processing Functions (See delay below) Crossover Frequency: 20Hz ~ 20kHz @ 1dB steps, Master Gain: 0 ~ 60dB, Channel gains: -20dB ~ +5dB Polarity: Phase Reversal 0 or 180, EQ filters Q 0.5 ~ 15 @ 0.1 steps, Input Mixer, Three Linking Functions: Volume Linking- Absolute or Relative, EQ Linking – Relative or Absolute, Crossover Linking – With EQ link on, Freq Link button will link crossovers

Delay 0 ~ 20ms / 0.02ms stops

Output EQ EQ bands: All Channels 31 @ ± 15dB in 0.1dB Steps, Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass

Crossover Butterworth & Bessel: 6, 12, 18, 24, 30, 36, 42, 48dB / Linkwitz: 12, 24, 36dB

XO Phase Rotation Variable Phase shift at HP and LP filters from 0° ~ 359°

Inputs 8 x Hi / 2 x RCA / BT

Input EQ EQ bands: All Channels 5 bands @ ± 15dB in 0.1dB Steps Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass Input Delay: 0 ~ 10ms in 0.02 Steps

Frequency Resp: 20Hz ~ 40kHz

Operating Voltage 11V ~ 16V

Input Sens (V) RCA 4V

Input Sens (V) Hi 24V

RCA Out Voltage 12 x 4V

RCA Out Specs THD+ Noise < 0.003 S/N Analog input ⧁ 108dB S/N Digital Input ⧁ 111dB

Amp Outputs | THD+Noise 100dB NA

Dimensions (mm) 241 x 180 x 50

Start-Stop ready Yes

EPS (Intelligent High-Level Input-Error Protection System) Yes

Finish Gold Anodized Aluminum

Auto Turn On via DC Offset or Signal Sensing Yes

Remote Turn on Output Yes

Clipping LED’s No

Built in Bluetooth aptX

Built In Wifi Yes

THD+Noise RCA 0.003%

S/N ratio RCA 108dB Analog / 111dB Digital

THD+Noise Amplifier 0.02%

S/N ratio Amplifier NA

Fuse Rating 10A

Input impedance: No Impedance adaptor needed 6 Ohm High Level

Controller BT Wireless Player Remote, Optional Wired Panel controller w/IPS Display Screen, Wi-Fi Mobile App control

Input Mixer Yes

Presets 8

Software Interface PC 32bit W7 and up

All Pass filters at input and output EQs Both 1st Order and 2nd Order

Navigation Mode w/ Input Priority Yes

Automatic Mode Switching Mixer Yes

Password Available Yes

Analog Noise Gate Yes

Variable Power Off Delay Yes

Seven DAC rolloff choices for ESS 9038 No

The Goldhorn P2 DSP Pro redefines audio playback quality with its cutting-edge design and technology. It is equipped with six ES9038Q2M DAC chips, ensuring detailed and clear sound across a wide range of audio formats including DFF, DSF, WAV, FLAC, APE, AIFF, and DSD (up to 256). The device features a unique Goldhorn-designed GHA1000 chip, high precision femtosecond clock generators, and a Texas Instruments OPA2604 Operation Amp among other high-end components, guaranteeing stability and quality in audio playback.

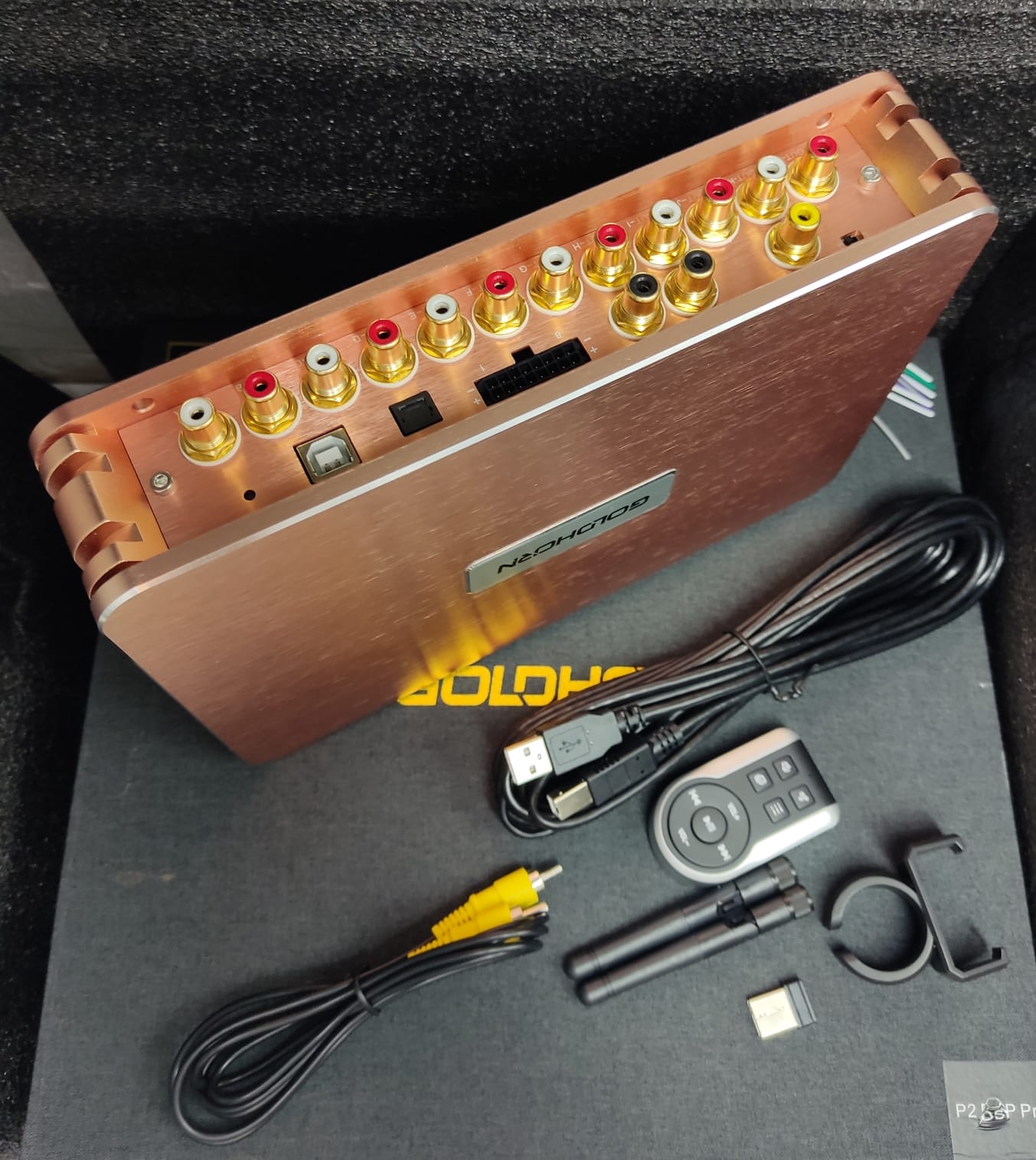

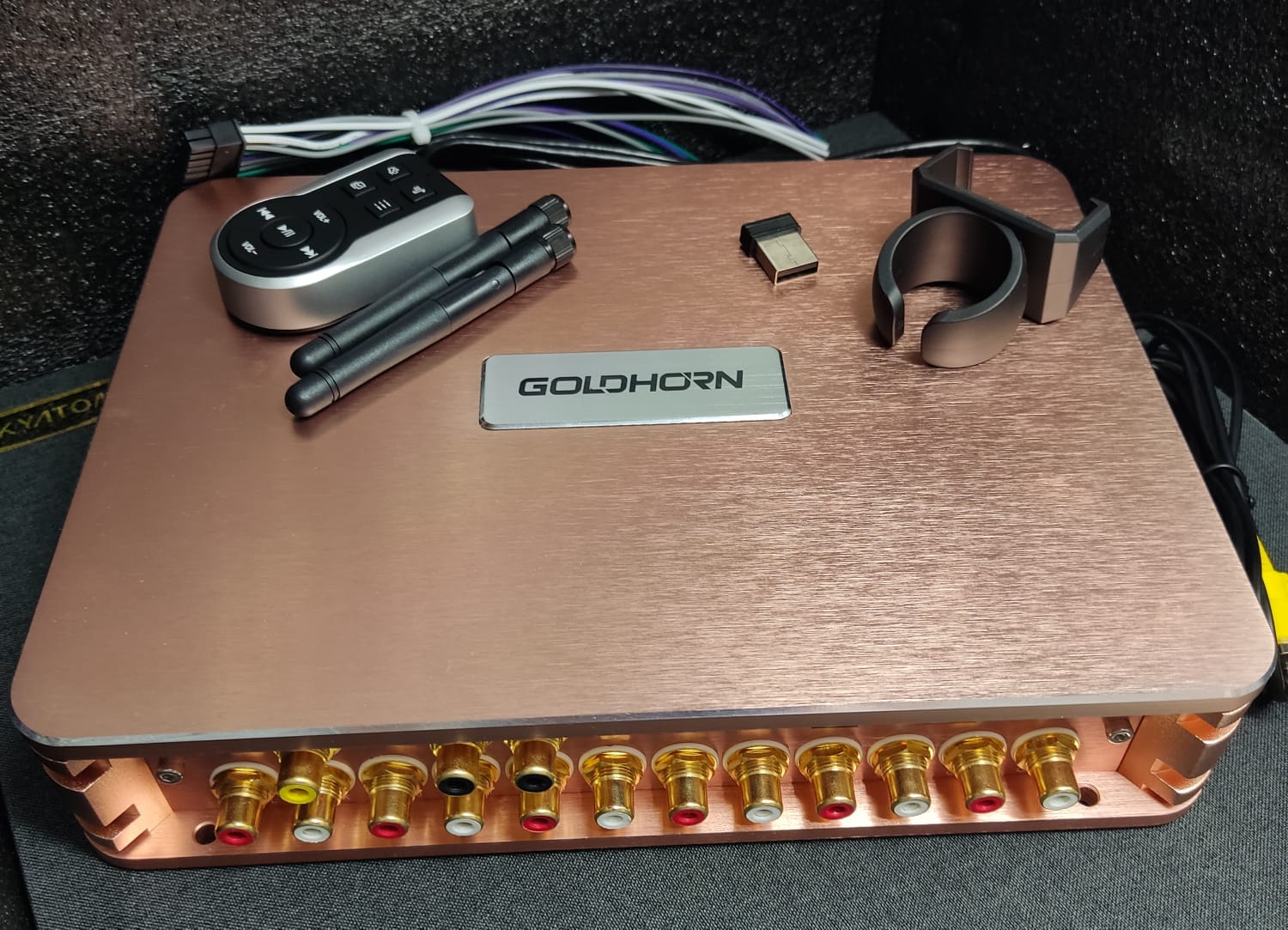

In addition to its superior sound technology, the P2 DSP Pro offers flexible connectivity and control. It has 8 high-level inputs, 2 AUX inputs, 1 optical output, and 12 RCA outputs, making it versatile for various audio setups. The integrated professional DSP allows for detailed audio customization, including 31-band EQ adjustments, crossover frequency, and slope settings. Users can easily manage settings through panel control with an IPS display, a wireless digital remote, or an app, ensuring a user-
