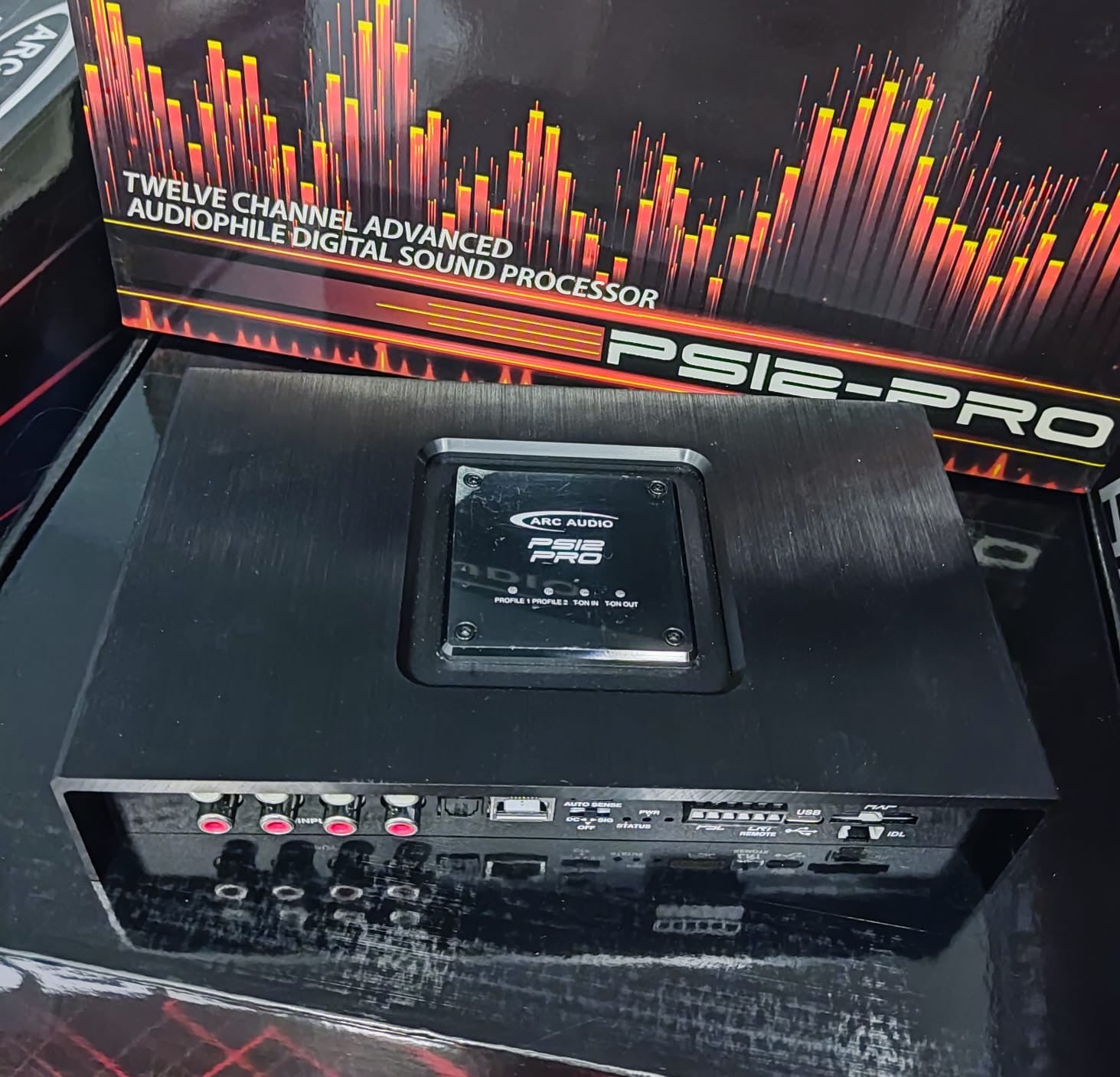

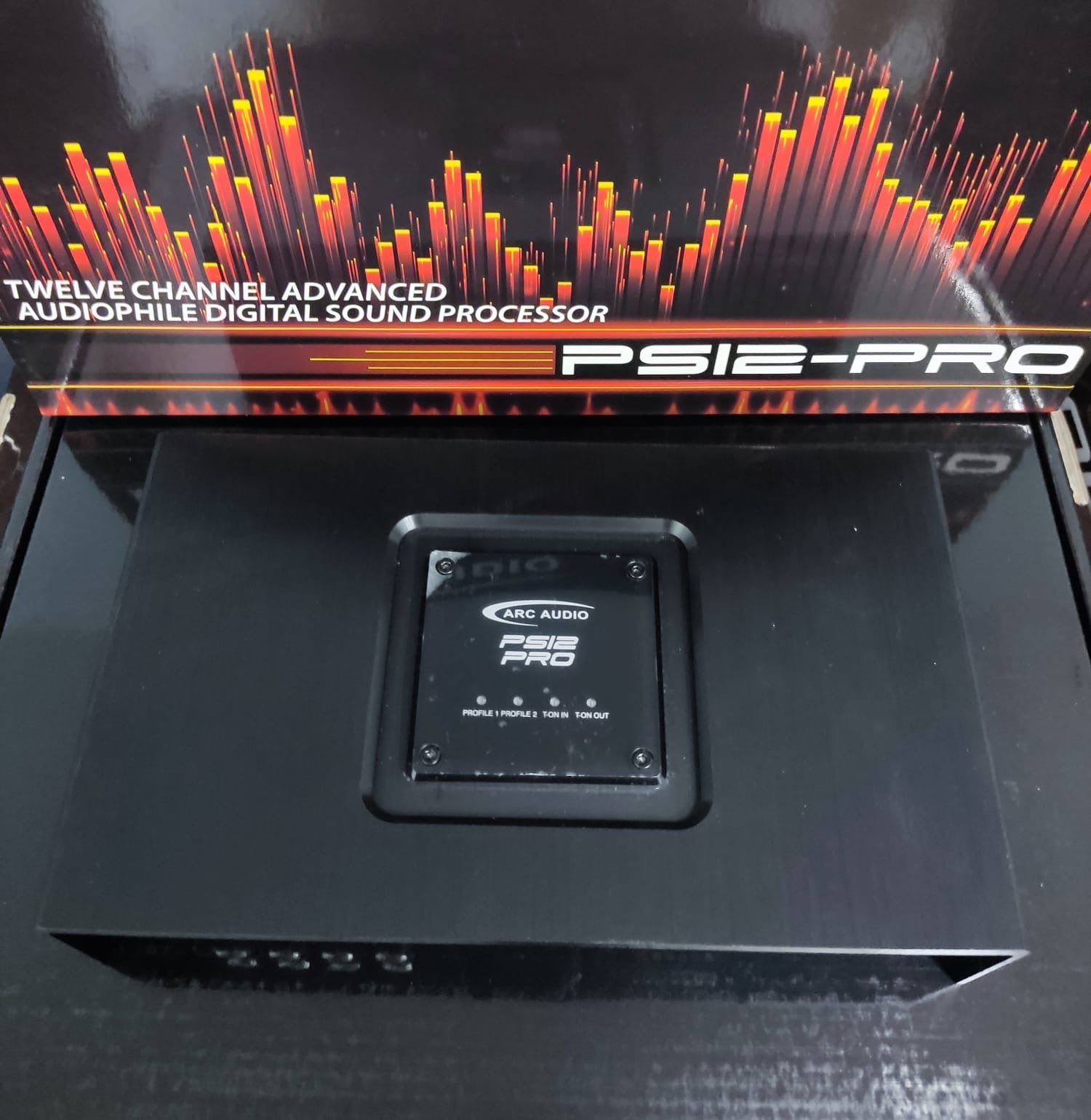

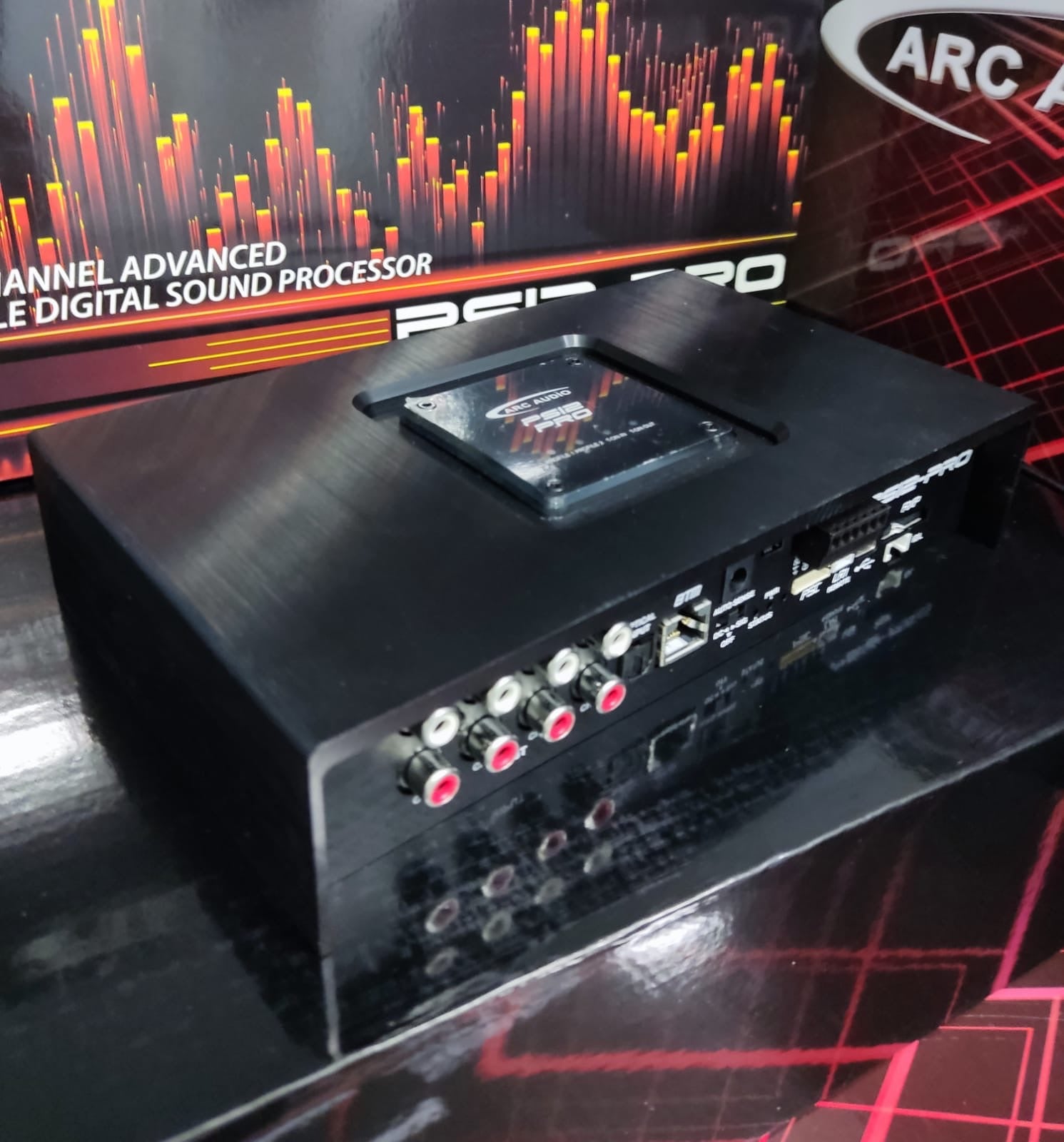

Arc audio ps12 pro

Processor Type Stand-Alone Unit

Processor Resolution Fixed Point Native 32-Bit

Main DSP Processor Analog Devices ADAU1462

ADC (Analog to Digital Converter) (Dual) AKM Velvet Sound 5558B

DAC (Digital to Analog Converter) AKM Velvet Sound AK4438

Total DSP Channels 12

Dual Footprint Op-Amp Design No

RCA Channels Out 12

RCA Output Voltage Up to 8V

Input Channels (Analog) 8

Input Channels (Analog Type) Differential (RCA or Speaker Level)

Input Sensitivity (Analog) .5V - 32V RMS

Input Impedance (Analog) 10k Ohms

Input Gain Type "Dedicated" Selection by channel "Pairs" in Input Mixer Utility

Optical Input Toslink

Digital Coaxial Input Yes - Requires D.O.C. Adapter

Max Digital Input Sample Rate 192kHz

Frequency Response 10Hz - 23.5kHz

S/N Ratio 1V 1:1 TBD

S/N Ratio 4V 1:1 TBD

S/N Digital TBD

DSP Operating Voltage 8V - 17.1 (Start Stop Compliant to 4.5V)

Auto-Sense Turn-on Yes - Signal & DC (BTL) (Uses Ch 1/2 Analog Inputs Only)

User Defined Presets Up to 4

Preset Control Without PC Or Controller Yes - Optional Manual Trigger Switches +/- for up to 4 presets (Not Included)

Compatible External Control (Optional) Yes - PSC or LR-2 (Sold Separately)

Dual External Control Use (Optional) Yes - PSC & LR-2 (Simultaneously)

AXP Wifi Control Adapter Card Optional accessory (Sold Separately)

DSP Integrated On/Off Timing Control Device Turn-on (Up to 40ms), Turn on Hold (Up to 40ms), Auto-sense hold time (up to 200ms)

DC Input Jack Yes

External Amplifier Remote "Turn-on Output" On/Off Timing Control Remote Turn on lead output adjustable from .05 - 40 seconds

iDatalink Maestro Amplifier Replacement Interface Capable Yes - Requires Vehicle compatible replacement module & T-Harness and ARC/iData signal harness adapter

iDatalink Maestro Compatibility List Check here

Multi-Processor System Expandability Yes - Requires each processor be connected with a full-time USB connection to a non-amplified USB hub. Also allows for full control of multiple DSPs with a single PC and GUI

Copper Series Matching Trim Package Yes (Optional Sold Separately)

USB Connection Type USB-C

Tuning Software Interface ARC Audio DNA Only

DNA Tuning Software Interface Download Download here

DNA Software Tuning Features Click here for tuning features

Dimensions 8.5"(L) x 5.1"(W) x 1.81"(H)
