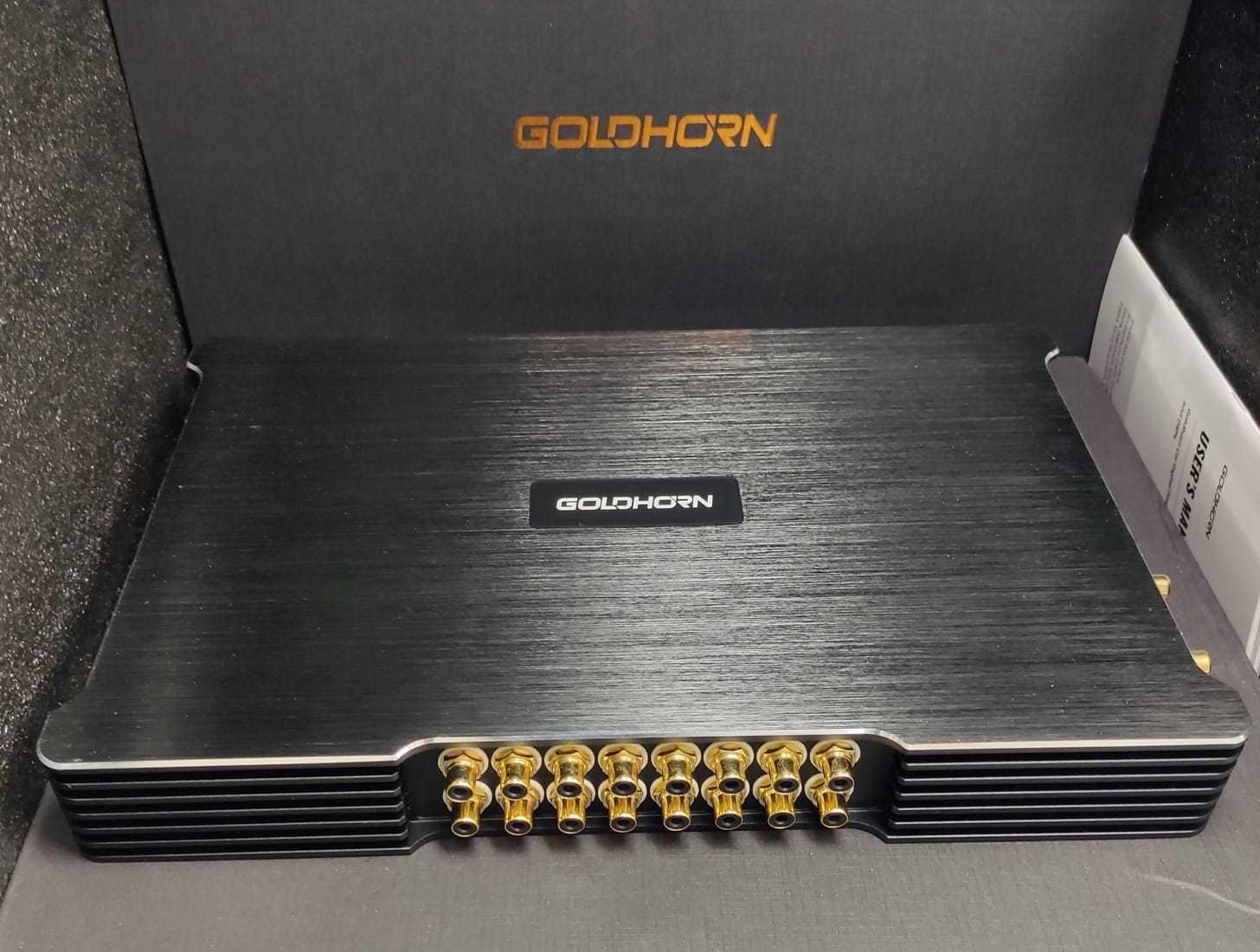

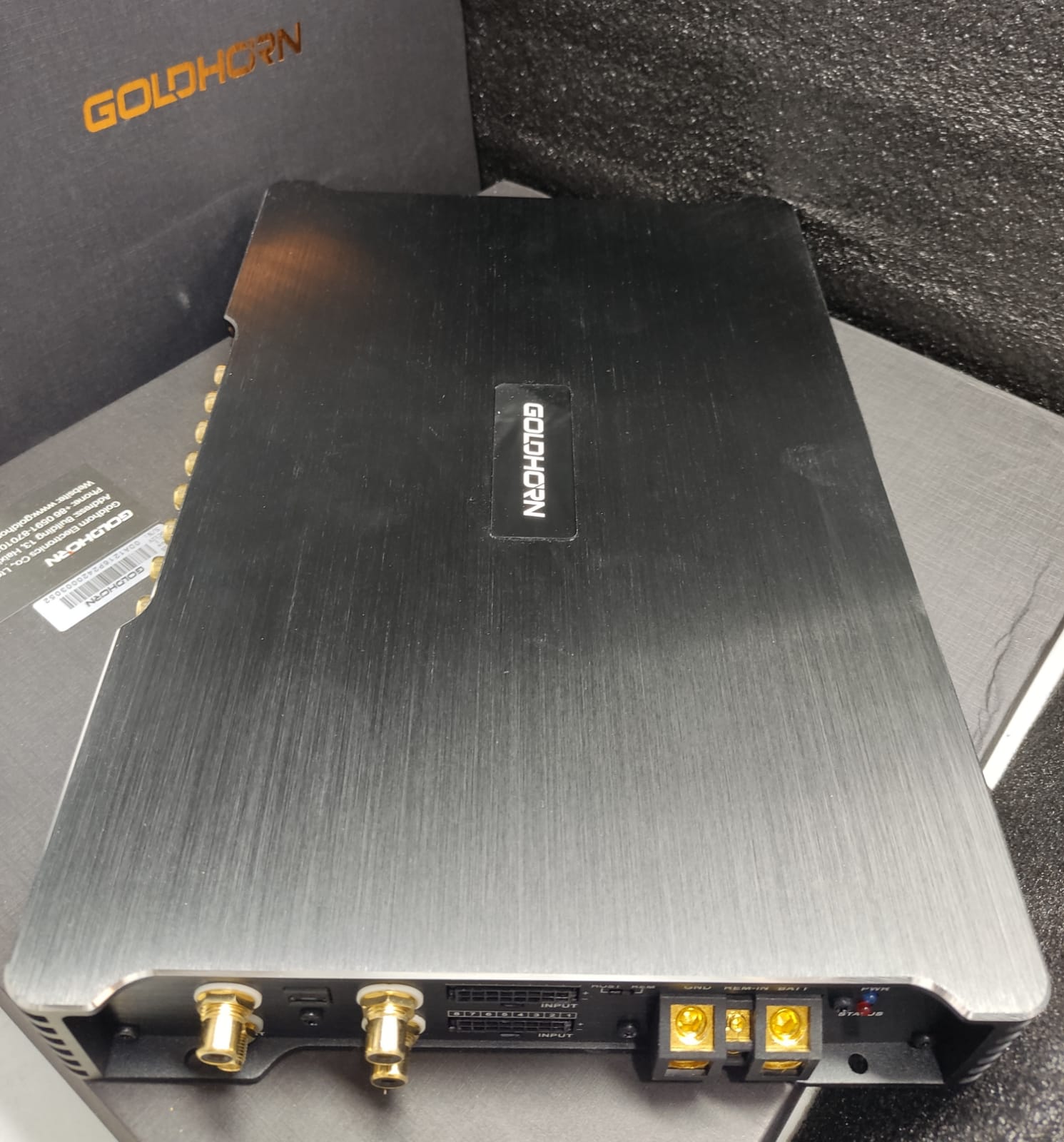

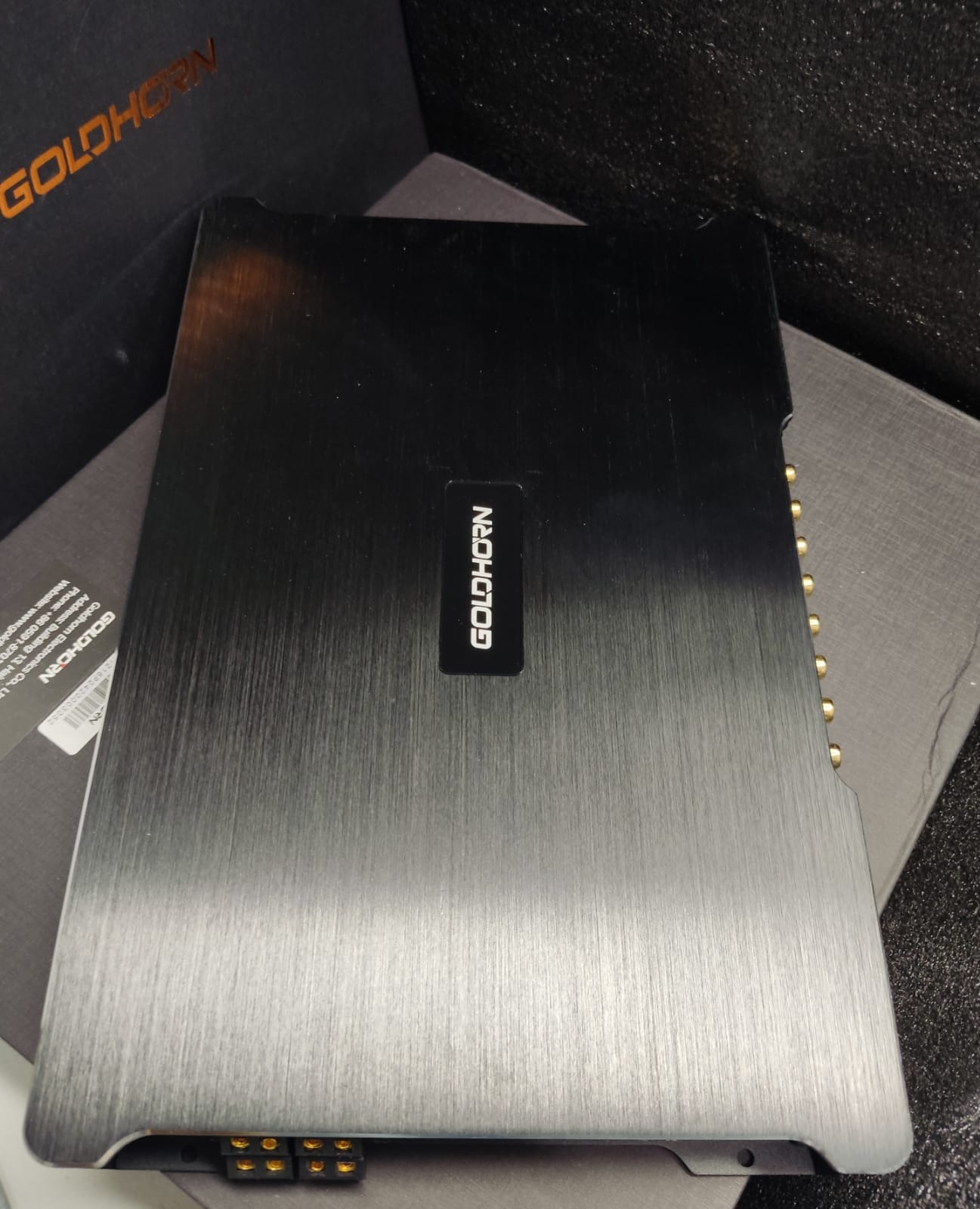

Goldhorn adsp 1216

DSPA 1216 Plus Technical Specs

DSP Chip ADAU1452

DAC Chip PCM1690

ADC Chip 2 x PCM1840

Opamp NJM4580 & MC33078

Capacitors High Temperature for High Reliability to 105°C electrolytics and WIMA film Caps

PC Connection USB B

Processing Functions Crossover Frequency: 20Hz ~ 20kHz @ 1dB steps / Master Gain: 0 ~ 60dB / Channel gains: -20dB ~ +5dB Polarity: Phase Reversal 0 or 180 / EQ filters Q 0.5 ~ 15 @ 0.1 steps / Input Mixer Three Linking Functions: Volume Linking- Absolute or Relative EQ Linking – Relative or Absolute Crossover Linking – With EQ link on, Freq Link button will link crossovers

Output EQ EQ bands: All Channels 31 @ ± 15dB in 0.1dB Steps Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass

Crossover Butterworth & Bessel: 6,12,18,24,30,36,42,48dB / Linkwitz: 12, 24, 36dB

Delay 0 ~ 20ms / 0.02ms Steps

Inputs 8 x Hi / 2 x RCA / Opt / Coax / BT

XO Phase Rotation Variable Phase shift at HP and LP filters from 0° ~ 359°

Input EQ EQ bands: All Channels 5 bands @ ± 15dB in 0.1dB Steps Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass Input Delay: 0 ~ 10ms in 0.02 Steps

Frequency Resp: 20Hz ~ 40kHz

Operating Voltage 10V ~ 16V

Input Sens (V) RCA 3V Max

Input Sens (V) Hi 16V

RCA Out Voltage 8 x 6V

RCA Out Specs THD+Noise < 0.003 S/N ⧁108

Amp Outputs 80W X 80

Dimensions (mm) Class D

Start-Stop ready 218 x 170 x 43

EPS Error Protection System Yes

Finish Yes

Auto Turn On via DC Offset or Signal Sensing Black anodized Aluminum

Remote Turn on Output Yes

Built in Bluetooth Yes

THD+Noise Amplifier 0.03%

S/N ratio Amplifier >100dB

THD+Noise RCA out <0.002%

S/N ratio RCA out 108dB

Fuse Rating 40A

Input impedance: 6 Ohms

Controller Optional

Input Mixer Yes

Presets 8

Software Interface 64 bit Windows 8, Windows 8.1 or Windows 10, 11

Navigation Mode Yes

Power off Delay Yes Variable

Noise Gate (analog Input) Yes

Automatic Switching Config. Yes

Input EQ 5 Bands / Chan

Input All Pass Filters 1st and 2nd Order

Input Delay 0 ~ 10ms / Chan

Variable Phase 0~360 at crossover filters Yes

Output EQ 31 All Channels

Hi-Shelf, Low-Shelf Yes

Output All Pass filters 31 per channel

Output Delay 0 ~20ms @ .02 steps

The DSPA 1216 Plus stands out with its robust built-in amplifier, delivering up to 80W per channel across eight channels and 150W per channel across four channels. In bridging mode, it reaches 200W per channel for two channels, ensuring your subwoofers and woofers, along with high-end speakers, produce rich and immersive 360° surround sound. The unit also features 16-channel RCA outputs, supporting a range of future upgrades, making it a future-proof addition to any vehicle.

Designed to integrate seamlessly with luxury vehicles like Mercedes-Benz, BMW, Audi, and more, the DSPA 1216 Plus ensures the original car speakers reach their full potential. It includes high-end components such as a Class D amplifier and Bluetooth® 5.0 with support for advanced audio codecs. The processor allows for precise audio customization with a 31-band EQ, crossover frequency, slope adjustments, and time alignment delays, catering to individual preferences for a superior listening experience. Additionally, its Error Protection System and navigation mix feature guarantee uninterrupted, high-quality audio output, further enhancing the user experience.

To create and configure your audio system, Goldhorn DSPA 1216 Plus is equipped with everything you need: digital optical TosLink and coaxial Coax inputs with support for 192 kHz / 24 bit (only one is used, selected via software), 16 high-level inputs, 2 RCA AUX inputs (used instead of 15 and
