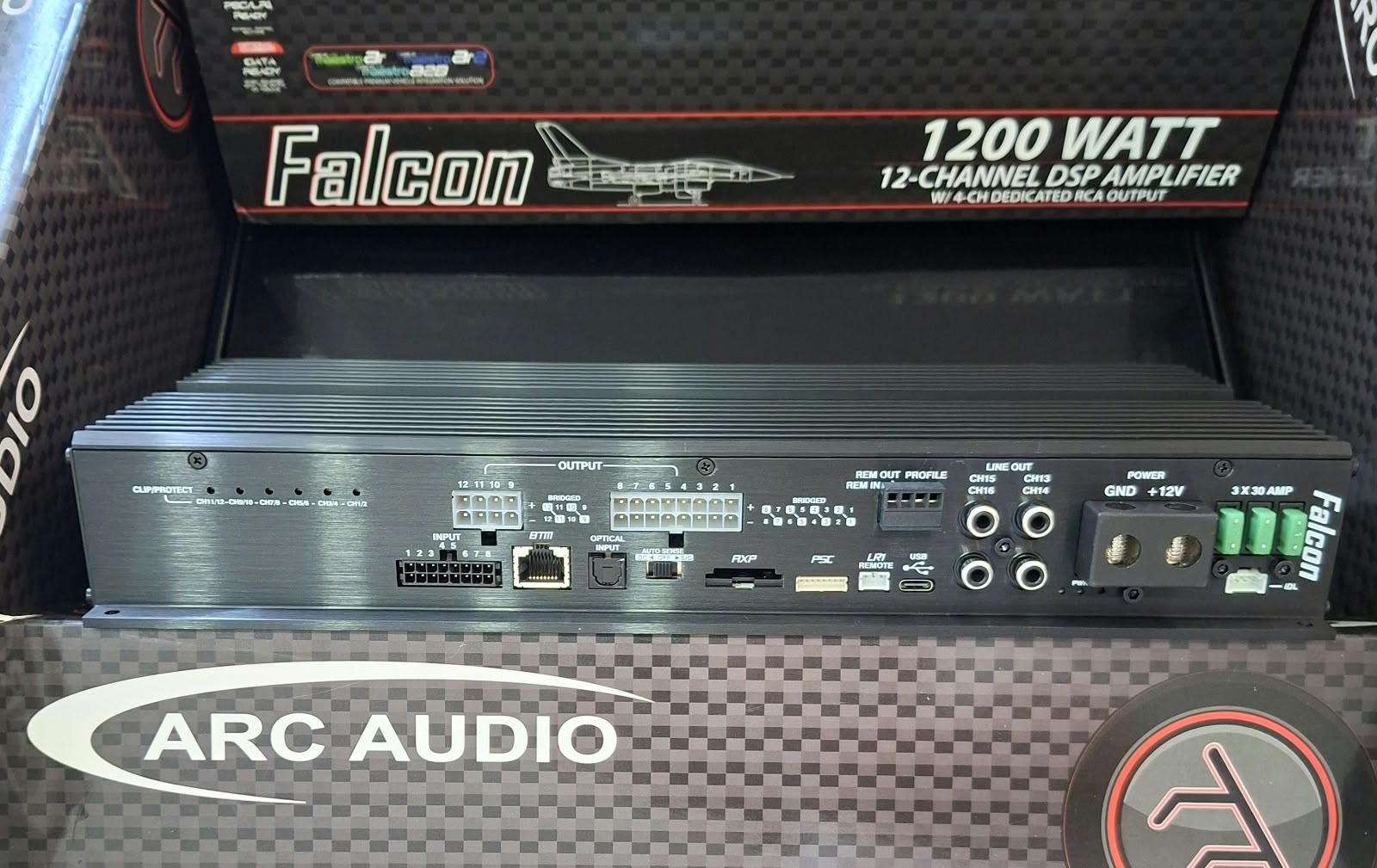

Arc Audio Falcon

Processor Type Integrated DSP Amplifier Processor Resolution Fixed Point Native 32-Bit Main DSP Processor Analog Devices ADAU1462 ADC (Analog to Digital Converter) (Dual) AKM Velvet Sound 5558B DAC (Digital to Analog Converter) (Dual) AKM Velvet Sound AK4438 Total DSP Channels 16 RCA Channels Out 4 RCA Output Voltage Up to 8V Total Amplified Output Channel 12 Stereo @ 4 Ohms 12 x 75 Watts Stereo @ 2 Ohms 12 x 125 Watts Bridgeable Speaker Outputs Yes Bridged @ 4 Ohms 6 x 250 Watts Bridged @ 2 Ohms (Not Recommended) Other Channels @ 4 Ohms N/A Other Channels @ 2 Ohms N/A Fuse Rating 3 x 30 Amp Amplifier Operating Voltage Range 8.0V - 17.1V Adjustable Class-D Switching Frequency Yes - Via DNA User Software Built-in Fan Cooled Yes Input Channels (Analog) 8 Input Channels (Analog Type) Balanced (RCA or Speaker Level) Input Sensitivity (Analog) .5V - 32V Input Impedance (Analog) 10k Ohms Input Gain Type "Dedicated" Selection by channel "Pairs" in input Mixer Utility Optical Input Toslink - Yes Digital Coaxial Input Yes - Requires D.O.C. Adapter Max Digital Input Sample Rate 192kHz Frequency Response 10Hz - 23.5kHz S/N Ratio 1V 1:1 107.1dB S/N Ratio 4V 1:1 108.4dB S/N Digital TBD DSP Operating Voltage 8V - 17.1 (Start Stop Compliant to 4.5V) Auto-Sense Turn-on Yes - Signal & DC (BTL) (Uses Ch 1/2 Analog Inputs Only) User Defined Presets Up to 4 Preset Control Without PC Or Controller Yes - Optional Manual Trigger Switches +/- for up to 4 presets (Not Included) Compatible External Control (Optional) Yes - PSC & LR-2 (Sold Separately) Dual External Control Use (Optional) Yes - PSC & LR-2 (Simultaneously) AXP Wifi Control Adapter Card Optional accessory (Sold Separately) DSP Integrated On/Off Timing Control Turn on Output (Up to 40ms), Turn on Hold (Up to 40ms), Auto-sense hold time (up to 200ms) External Amplifier Remote "Turn-on Output" On/Off Timing Control Remote Turn on lead output adjustable from .05 - 40 seconds iDatalink Maestro Amplifier Replacement Interface Capable Yes - Requires Vehicle compatible replacement module & T-Harness and ARC/iData signal harness adapter iDatalink Maestro Compatibility List Check compatibility Multi-Processor System Expandability Yes - Requires each processor be connected with a full-time USB connection to a non-amplified USB hub. Also allows for full control of multiple DSPs with a single PC and GUI USB Connection Type USB-C Tuning Software Interface ARC Audio DNA Only DNA Tuning Software Interface Download Download here DNA Software Tuning Features
