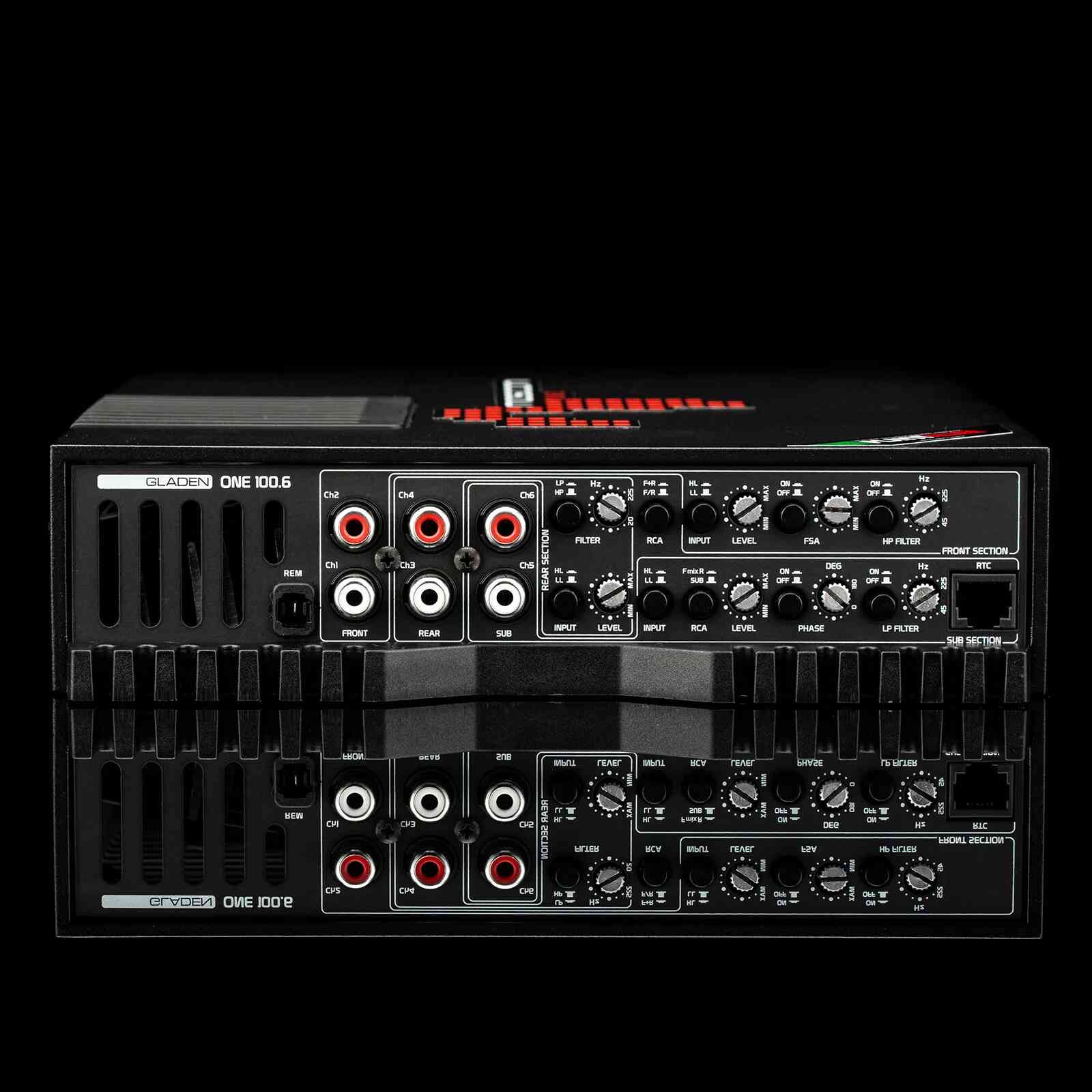

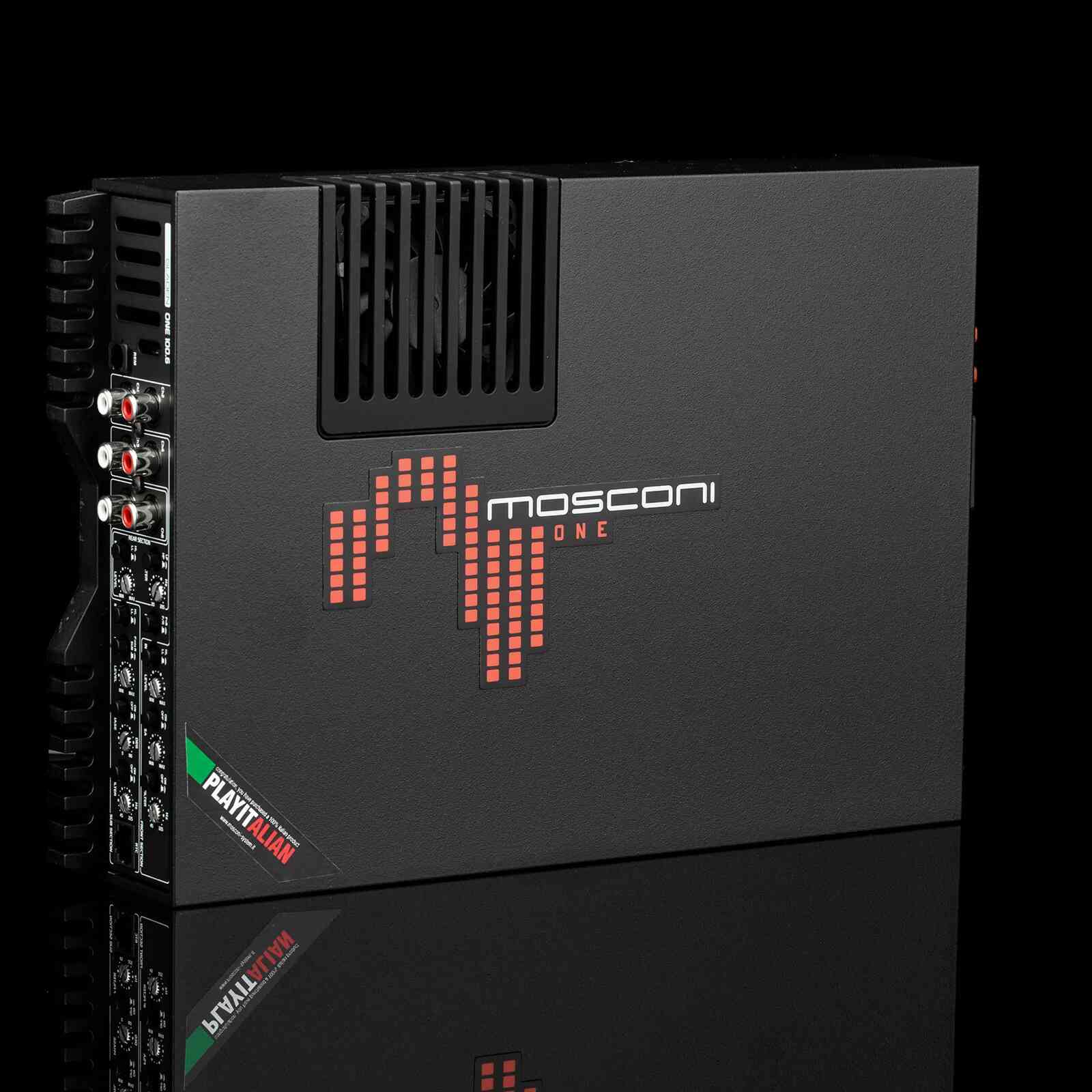

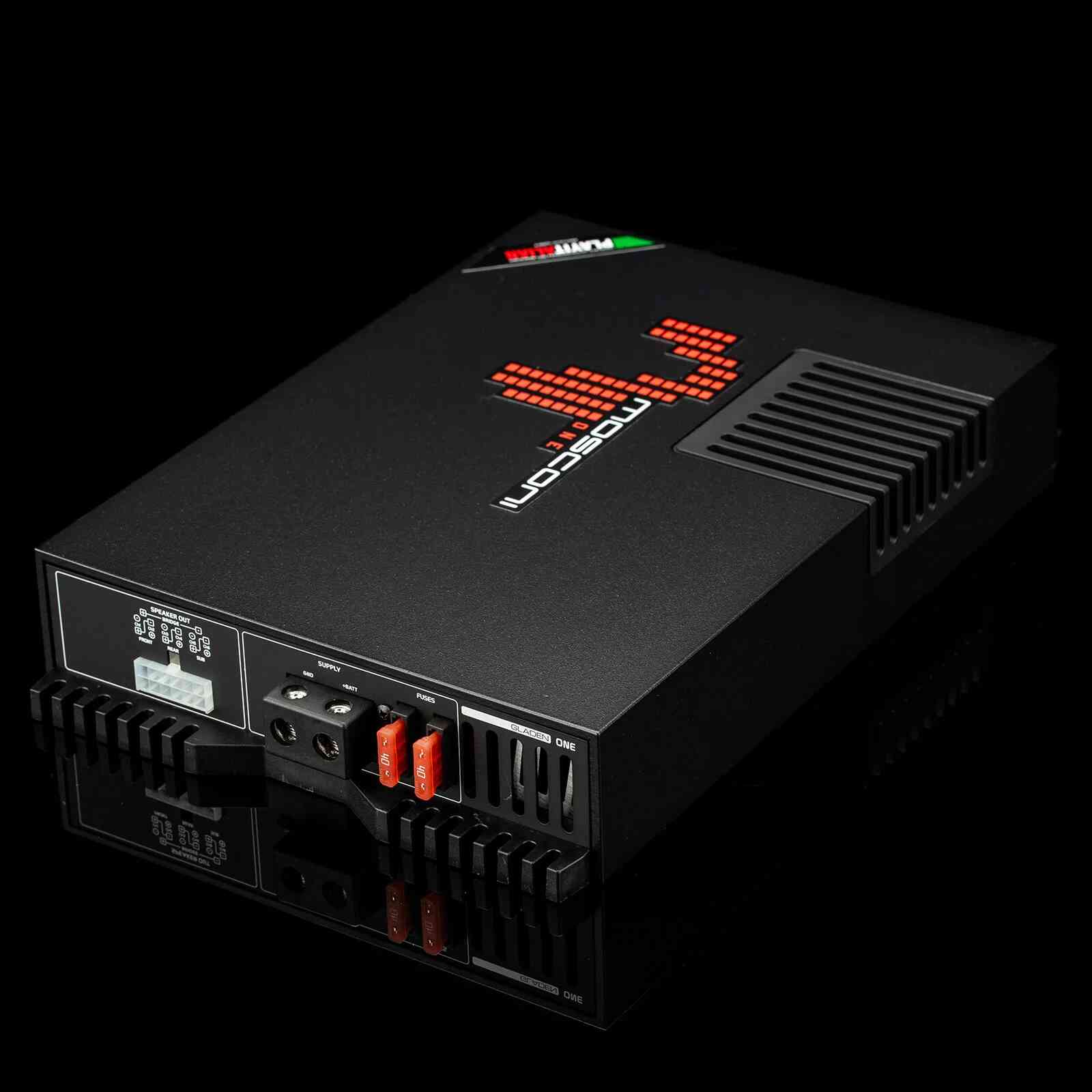

MOSCONI ONE 100.6

OVERVIEW MOSCONI ONE 100.6

The  MOSCONI ONE 100.6  is a universal 6 channel high quality amplifier in Class AB technology. It is the ideal amplifier for speaker systems in combination with efficient subwoofers. The ONE 100.6 is equipped with a switchable FSA function. The FSA (Front Stage Adjuster) is based on an adjustable phase shift in a defined frequency range, and improves the stage imaging of your front speakers. This amplifier plays powerfully and offers superior sound characteristics thanks to the analog Full Mosfet-technology.

Remote volume control (optional)

Low level / high level input mode (by switch)

FSA (FRONT section)

Phase shift (SUB section)

Auto sense (only in high level mode)

TECHNICAL DATA MOSCONI ONE 100.6

OUTPUT POWER:

Output power @ 4Ω: 6 x 100 Watts

Output power @ 2Ω: 6 x 120 Watts

Output power @ 4Ω: 4 x 95 Watts + 1 x 250 Watts BTL

Bridged Output power @ 4Ω: 3 x 240 Watts

SPECIFICATIONS:

Input sensitivity: 0.35 V – 16 V

Crossover channel 1 + 2: 45 – 225 Hz – 12 dB/Oct – HP (ON-OFF)

Crossover channel 3 + 4: 20 – 225 Hz – 12 dB/Oct – LP or HP (always ON)

Crossover channel 5 + 6: 45 – 225 Hz – 12 dB/Oct – LP (ON-OFF)

Dimensions: 310 x 200 x 50 mm

Weight: 2,7 kg
