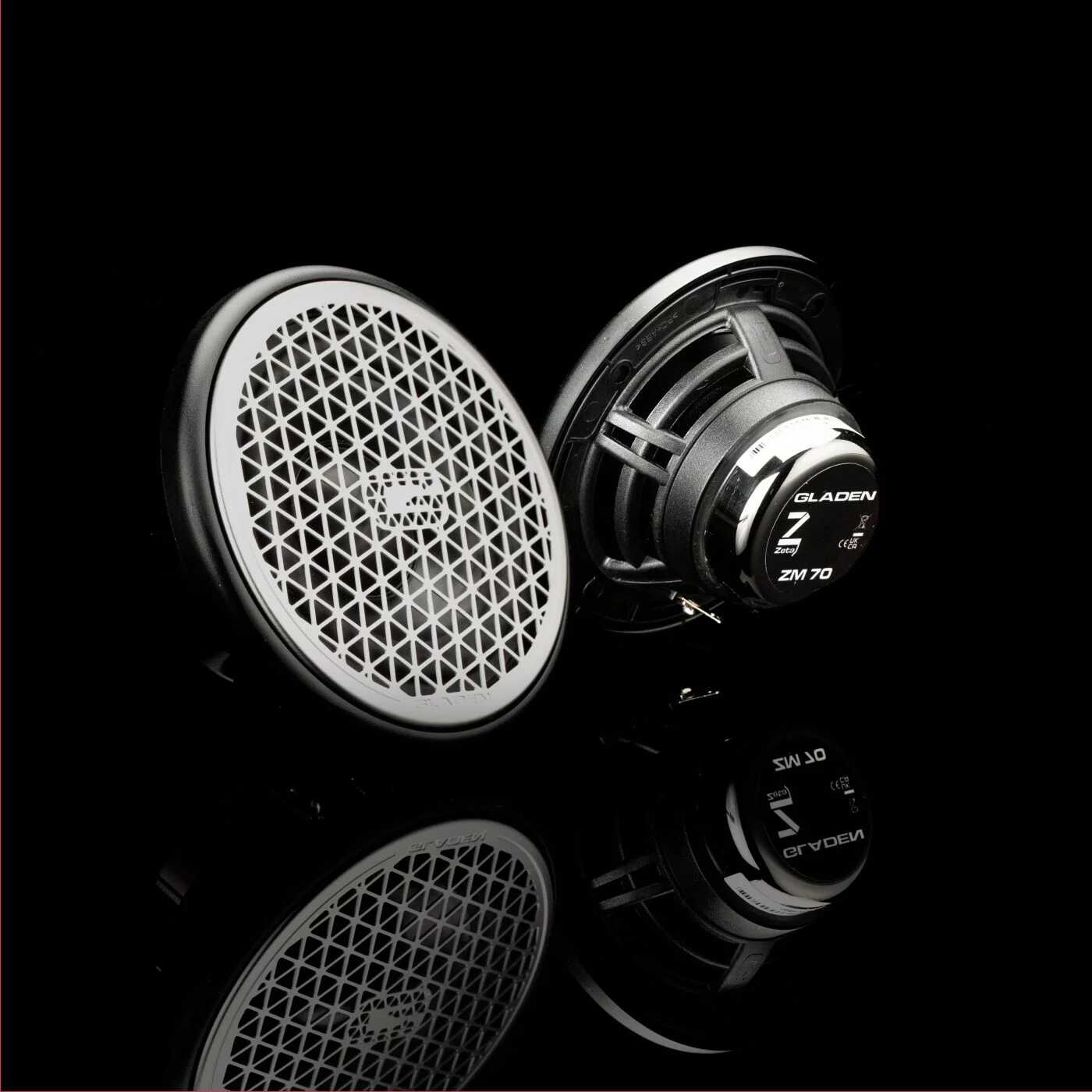

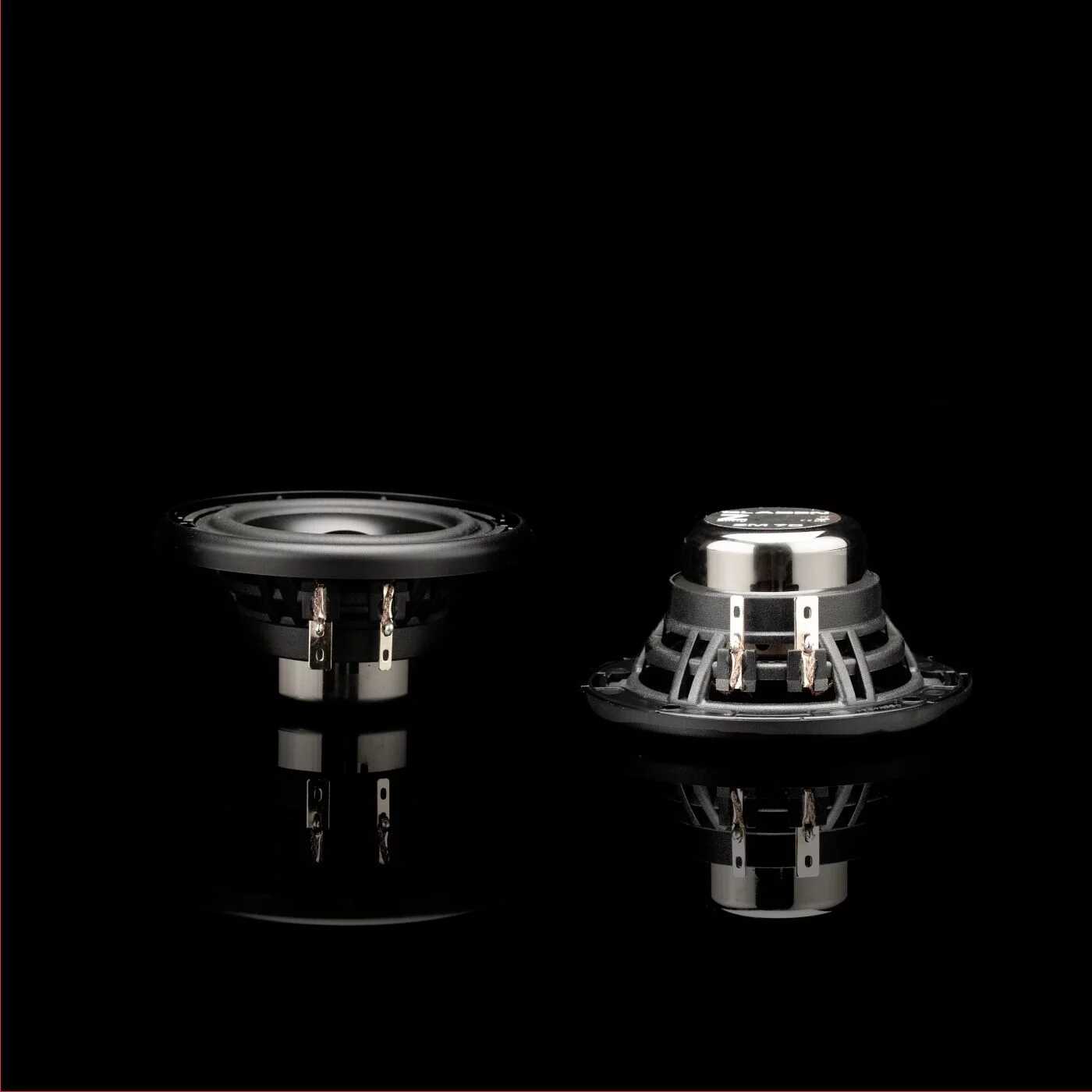

Gladen ZETA ZM 70

Overview Gladen ZETA ZM 70

The  SIGMA ZM70  is a  high-end midrange  and  full-range driver  that combines state-of-the-art speaker technology with exceptional flexibility and innovative design. The ZM70 is particularly suitable for sophisticated car audio systems where  sound quality ,  installation options  and  visual appearance  are key.

Special features of the SIGMA ZM70:

Full-range cone construction : The  SIGMA ZM70  is a  full-range speaker  that features a  cone  with  on-axis response  up to and beyond  17 kHz . This means that the speaker accurately reproduces even the finest details and high-frequency nuances with great precision, resulting in extremely clear and natural sound.

Advanced Mounting System : A standout feature of the ZM70 is its  advanced mounting system , which allows the speaker to be used in a variety of installation scenarios. The speaker can be used in both  custom interior solutions  (such as A-pillars) and in  tight, standardized mounting holes  in the vehicle. This versatility makes it easy to integrate into almost any vehicle.

Vented voice coil : The ZM70 features a vented  voice coil  that reduces  distortion  and  compression  at high volumes. This ensures significantly more precise and undistorted reproduction, even during intense sound events or at very high frequencies.

Low-loss suspension (high Qm) : A  high-quality, low-loss suspension  with  high Qm  ensures particularly  detailed and dynamic reproduction . This means that the speaker remains extremely precise and differentiated even at low volumes or during extremely fast changes in sound, which greatly increases the  dynamics  and  detail  of the music material.

Design and appearance : The ZM70 is supplied with  high-quality accessories  to ensure that it impresses at the highest level, both acoustically and visually. The scope of delivery includes two different grille options: Hexagon grilles  for a modern, eye-catching look.

OEM grilles  (available in either  silver brushed  or  black chrome ) that give the speaker an elegant, almost unobtrusive look and can be perfectly integrated into a vehicle's interior.

Product variants:

GA-ZM-70-silver : With  silver brushed OEM grille .

GA-ZM-70-black : With  black chrome OEM grille .

Conclusion:

The  SIGMA ZM70  is the ideal speaker for  audiophiles  who not only demand the highest sound quality, but also flexibility when it comes to  integrating it into their vehicle . With its  axis-precise reproduction ,  ventilated voice coil  and  high-quality suspension , the ZM70 delivers  outstanding detail  and particularly  dynamic reproduction . In addition, the well-thought-out  mounting system  ensures that the speaker can be easily integrated into almost any installation situation.

Technical Data Gladen ZETA ZM 70

DC resistance (Rdc): 3,6Ω

Nominal impedance (ZN): 4 Ω

Resonance frequency (fs):  122Hz

Voice coil diameter:  22mm

Dome: Aluminum

Cut-off Frequency: 300Hz  24dB/Oct
